PK 480 TEC
  • More intelligent operation with PALTRONIC 180 control electronics
  • Extra smooth control thanks to LX-6 control valve
  • Very stiff and light boom system thanks to P-Profile
  • More efficient and faster due to continuous slewing system
  • High user friendliness due to in-house developed radio remote control PALcom P7
  • More efficiency with fly jib due to DPS-C
  • Maximum utilisation of the working range thanks to extended HPSC
  • More lifting power due to S-HPLS
  • Practical and attractive due to Functional Design

Technical data

Max. lifting moment 45,7 mt
Max. lifting capacity 16500 kg
Max. hydraulic outreach 21,2 m
Max. manual outreach 25,9 m
Slewing angle
Slewing torque with 1 gear 4,0 mt

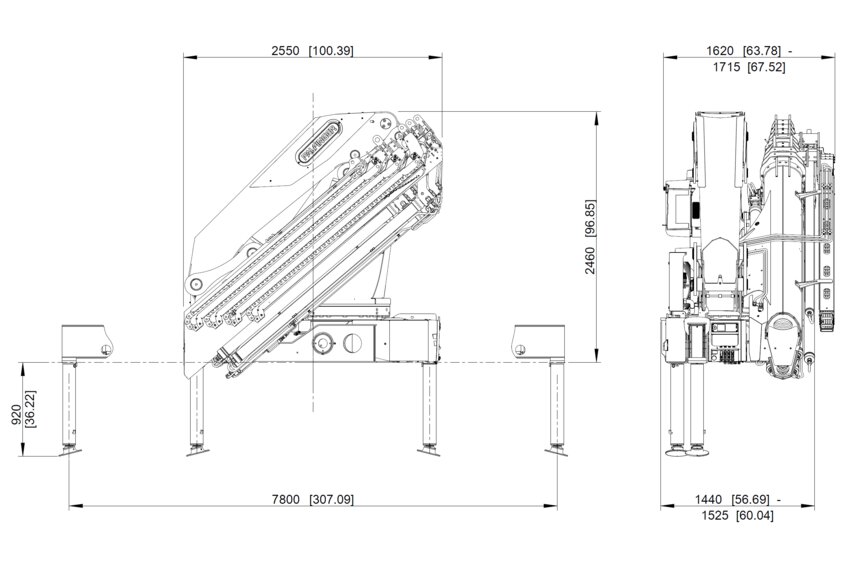

Stabiliser spread (std) 7.8 m
Fitting space required (std) 1,43 m
Width folded 2,55 m
Max. operating pressure 385 bar
Pump capacity 90 - 120 l/m
Weight 4300 t
Slewing torque with 2 gears 5,2 mt
Max. outreach (with fly jip) 33,9 m

Technical data

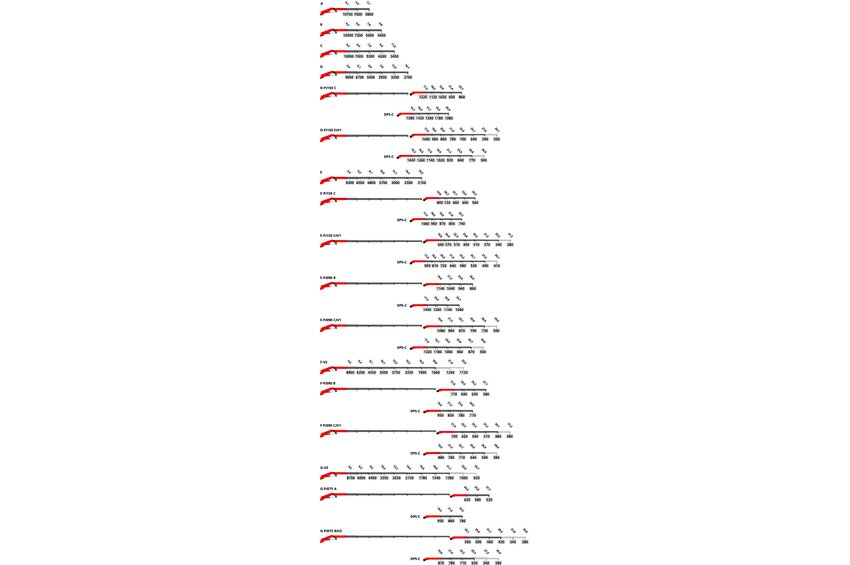

Lifting moment Outreach Slewing angle Slewing torque Pressure Pump capacity Crane weight Crane height Crane width Installation width Max stroke length Max. lifting capacity Load vertical
A 42.7 mt 7.9 m ∞ ° 4.0 mt 38.5 Mpa 90-120 l/min 4300 kg 2460 mm 2550 mm 1440 mm 7700 mm - 5800 kg
B 41.5 mt 9.9 m ∞ ° 4.0 mt 38.5 Mpa 90-120 l/min 4530 kg 2460 mm 2550 mm 1440 mm 9800 mm - 4450 kg
C 40.8 mt 12.0 m ∞ ° 4.0 mt 38.5 Mpa 90-120 l/min 4780 kg 2460 mm 2550 mm 1440 mm 1190 mm - 3450 kg
D 40.0 mt 14.3 m ∞ ° 5.2 mt 38.5 Mpa 90-120 l/min 5030 kg 2460 mm 2550 mm 1440 mm 14100 mm - 2700 kg
E 39.4 mt 16.6 m ∞ ° 5.2 mt 38.5 Mpa 90-120 l/min 5240 kg 2460 mm 2550 mm 1525 mm 16500 mm - 2150 kg
F 38.7 mt 18.9 m ∞ ° 5.2 mt 38.5 Mpa 90-120 l/min 5450 kg 2460 mm 2550 mm 1525 mm 18798 mm - 1660 kg
G 38.3 mt 21.2 m ∞ ° 5.2 mt 38.5 Mpa 90-120 l/min 5580 kg 2460 mm 2550 mm 1525 mm 21100 mm - 1380 kg
