PK 14002-EH High Performance

Reliable and versatile - perfect partner in the municipal economy

  • Higher payloads due to intelligent lightweight design
  • Perfect appearance and the highest value retention due to coating technology
  • Maximum utilisation of the working range due to HPSC
  • Increase in application due to hose assembly
  • More lifting power due to E-HPLS

Technical data

Max. lifting moment 12,5 mt
Max. lifting capacity 6100 kg
Max. hydraulic outreach 17,0 m
Slewing angle 420°
Slewing torque with 1 gear 1,6 mt
Stabiliser spread (std) 5.0 m
Width folded 2,51 m
Max. operating pressure 350 bar
Pump capacity 50 - 70 l/m
Weight 1789 t
Max. outreach (with fly jip) 23,0 m

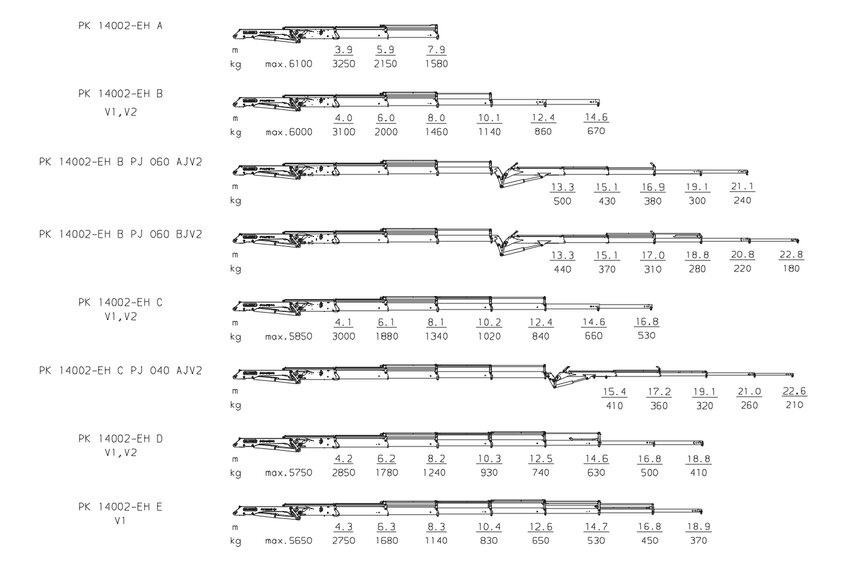

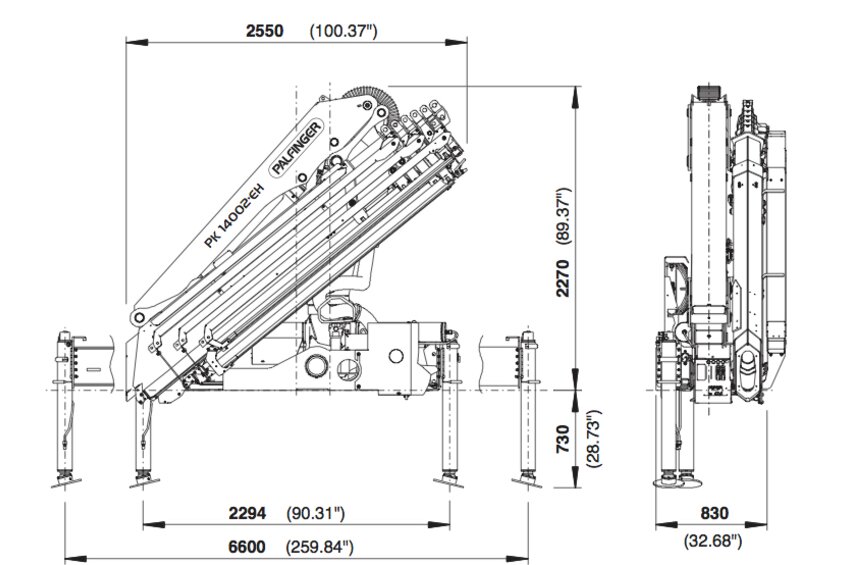

Technical data

Lifting moment Outreach Slewing angle Slewing torque Pressure Pump capacity Crane weight Crane height Crane width Installation width Max stroke length Max. lifting capacity Load vertical
A 12.9 mt 8.1 m 420 ° 1.6 mt 35.0 Mpa 50-70 l/min 1789 kg 2270 mm 2510 mm 830 mm 7947.72 mm 6100 kg 1580 kg
B 12.5 mt 10.3 m 420 ° 1.6 mt 35.0 Mpa 50-70 l/min 1922 kg 2270 mm 2510 mm 830 mm 10177.72 mm 6000 kg 1140 kg
C 12.2 mt 12.6 m 420 ° 1.6 mt 35.0 Mpa 50-70 l/min 2030 kg 2270 mm 2510 mm 900 mm 12407.72 mm 5850 kg 840 kg
D 11.9 mt 14.8 m 420 ° 1.6 mt 35.0 Mpa 50-70 l/min 2131 kg 2270 mm 2510 mm 940 mm 14637.72 mm 5750 kg 630 kg
E 11.6 mt 17.0 m 420 ° 1.6 mt 35.0 Mpa 50-70 l/min 2232 kg 2270 mm 2550 mm 940 mm 16867.72 mm 5650 kg 450 kg
