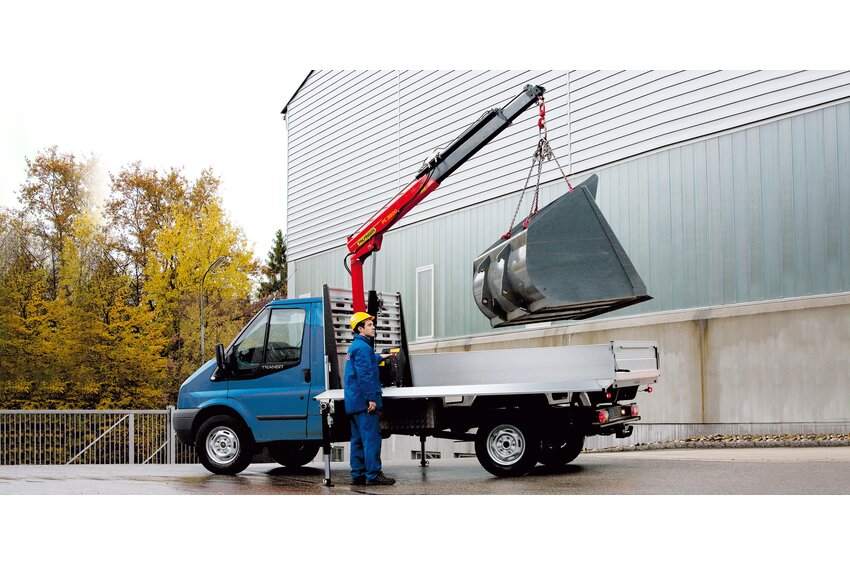

PC 3800 Compact

Compact lightweight solutions between one and four metre tonnes with real PALFINGER power

  • High value retention thanks to coating technology
  • Optimum protection thanks to internal oil ducts in the extention cylinders
  • Load holding valves prevent the crane boom from dropping
  • Extended range of applications thanks to the optional radio remote control and cable winch

Technical data

Max. lifting moment 3,7 mt
Max. lifting capacity 2000 kg
Max. hydraulic outreach 5,0 m
Max. manual outreach 7,1 m
Slewing angle 325°
Fitting space required (std) 445,00 m
Max. operating pressure 200 bar
Pump capacity 12 l/m
Weight 238 t

Technical data

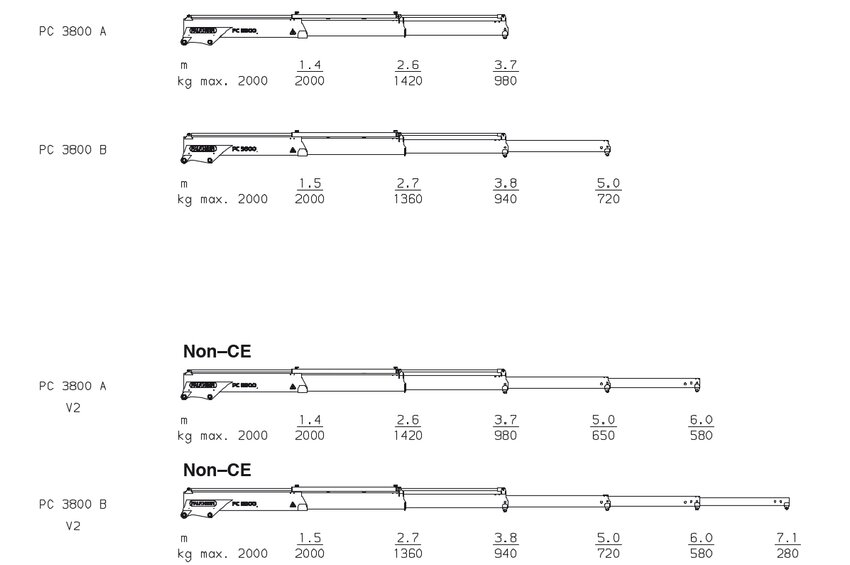

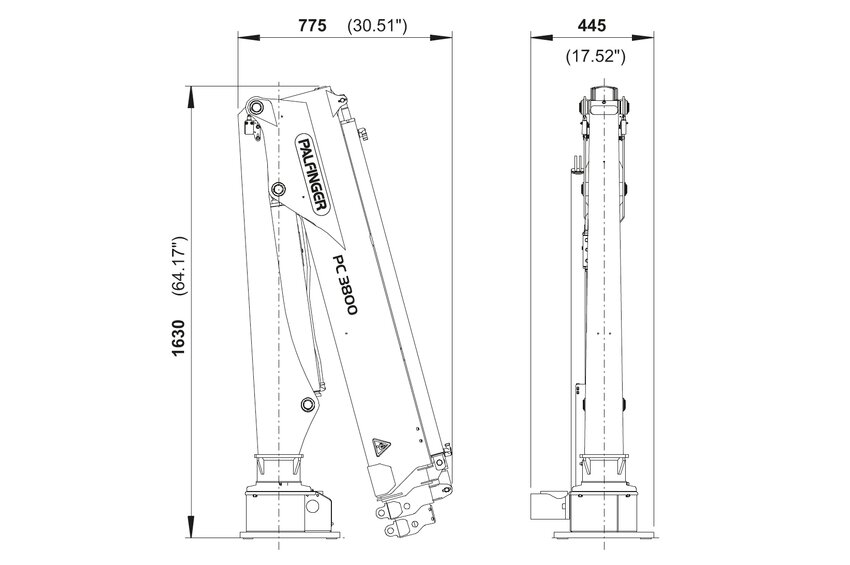

Lifting moment Outreach Slewing angle Slewing torque Pressure Pump capacity Crane weight Crane height Crane width Installation width Max stroke length Max. lifting capacity Load vertical
A 3.7 mt 3.7 m 325 ° 0.3 mt 20.0 Mpa 12 l/min 238 kg 1630 mm 775 mm 445 mm 3747 mm 2000 kg 970 kg
B 3.6 mt 5.0 m 325 ° 0.3 mt 20.0 Mpa 12 l/min 262 kg 1630 mm 775 mm 445 mm 4967 mm 2000 kg 710 kg
Back to overview
Model

PC 3800 Compact

Brand

Palfinger
